Дължина с изходи 5M 160A | Spark & Co
  • 3D
|

СКУ: KSA160ED45010

Дължина с изходи 5M 160A

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Degree of protection (IP)
    EV006420
  • Width
    54
  • Number of poles
    5
  • RAL-number
    9001
  • Flexible
    FALSE
  • Number of conductors (without earthing)
    4
  • Rated voltage at AC 50 Hz
    230
  • Model
    EV002646
  • Height
    146
  • Rated current at AC 50 Hz
    160
  • Length
    5000
  • Number of tap-off units
    10

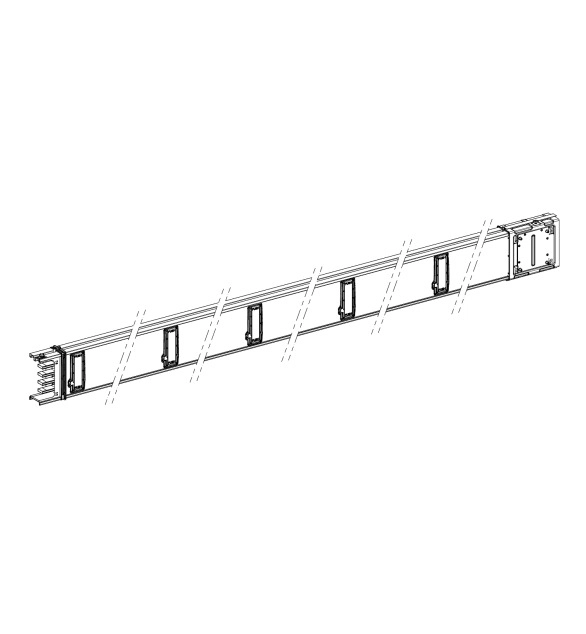

Canalis busbar trunking for KSA. It's applied to medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 160A at 35 ℃. Mounted by screws with up neutral position. Distribution length busbar whose material is aluminium and trunking polarity is 3L + N + PE. Designed with 10 tap-off outlets. It provides 0.41 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
