СКУ: KSB160SF5

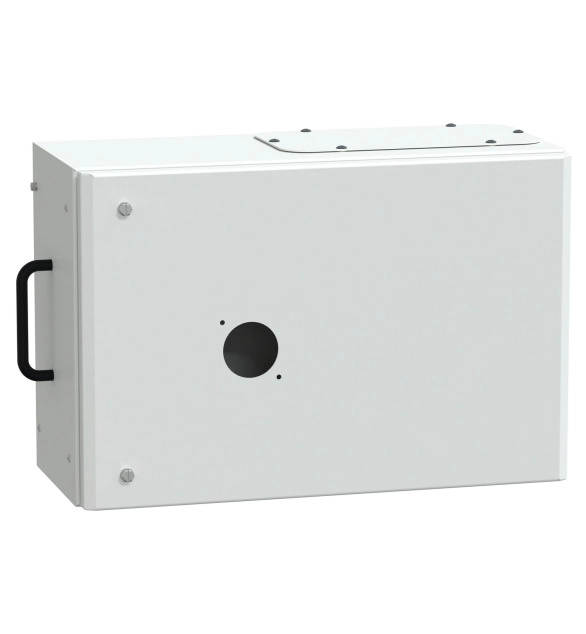

Изходяща кутия 160A за предпазители
-
Brand
Schneider Electric
-
Number of poles
3
-
Colour
EV000202
-
Number of conductors (without earthing)
3
-
Degree of protection (IP)
EV006420
-
Protection
EV000494
-
RAL-number
9001
-
Width
350
-
Number of other socket outlets
-
Number of CEE socket outlets
-
Phase selection
FALSE
-
Number of NEMA socket outlets
-
With adjustment
FALSE
-
Rated voltage at AC 50 Hz
230
-
Branch off type
EV008941
-
Length
732
-
Rated current at AC 50 Hz
400
-
Height
438
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TN-C earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 100A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + PEN. It provided protection for size 00 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
