СКУ: 81283
Контакт за монтаж на стена накл. 63A 3PNT
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
Cable entry
EV004016
-
Connection system
EV001008
-
Identification colour
EV000233
-
Degree of protection (IP)
EV006423
-
Clock hour position
6
-
Military model
FALSE
-
Voltage according to EN 60309-2
EV009026
-
IEC-amperage
63
-
Angle of plug
EV000164
-
Phase inverter
FALSE
-
Surface treatment contacts
EV000191
-
Contact material
EV006576
-
RAL-number

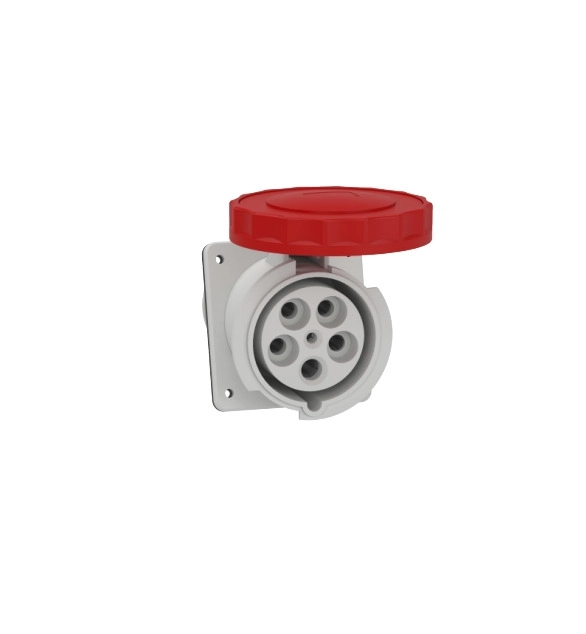

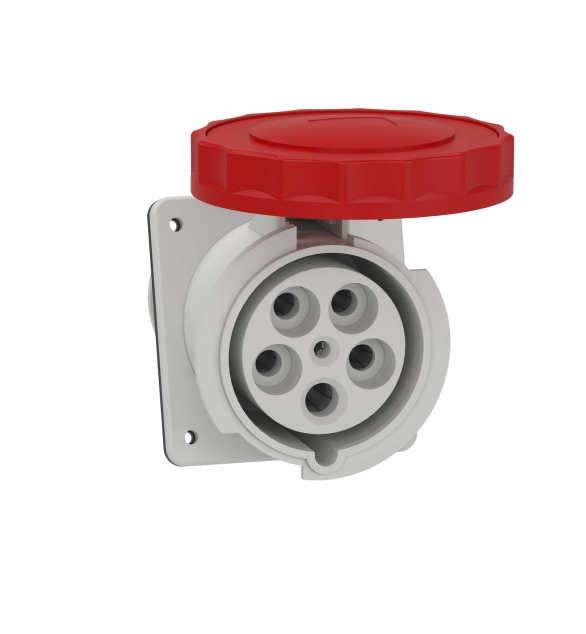

This Mureva PK socket with completely loosened captive screws connection is wall mounted. It has 3P+N+E poles, rated current is 63A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 104mm x (H) 255mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm² to 25mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
