Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Width in number of modular spacings
4
-
Frequency
50
-
Additional equipment possible
TRUE
-
Rated current
32
-
Release characteristic
EV000084
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Connectable conductor cross section solid-core
1.5
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Pollution degree
3
-
Number of poles (total)
4
-
Number of protected poles
4
-
Rated voltage
415
-
Built-in depth
44
-
Rated impulse withstand voltage Uimp
6
-
Rated insulation voltage Ui
500
-
Connectable conductor cross section multi-wired
1.5
-
Current limiting class
3
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10

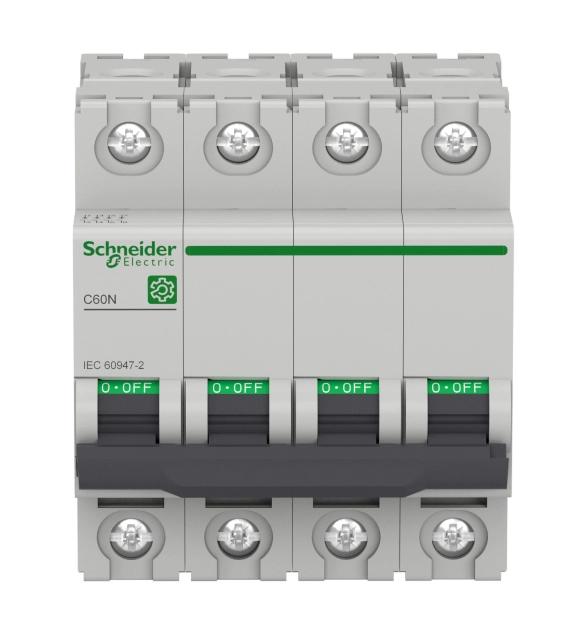

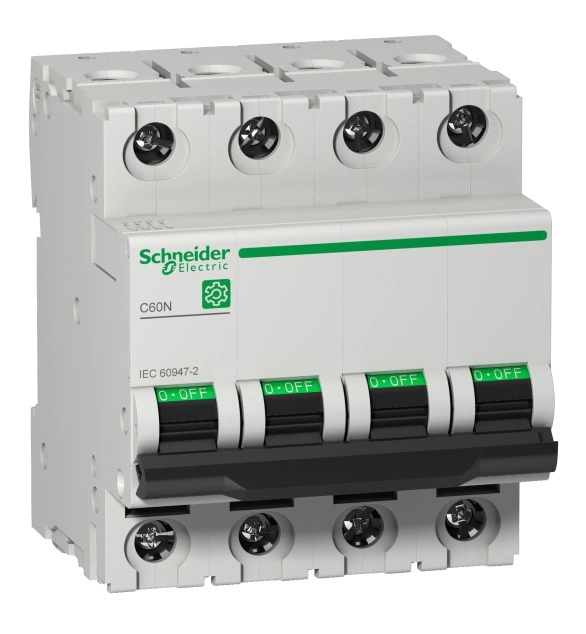

Миниатюрен авт. прекъсвач (MCB), Multi9 C60N, 4P, 32A, C крива, 10kA (IEC/EN 60947-2)
Item number: M9F11432
