СКУ: MCSESM163F23F0

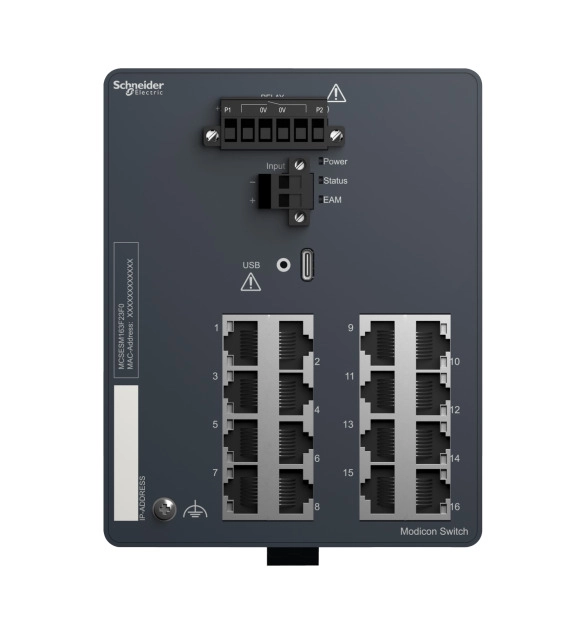

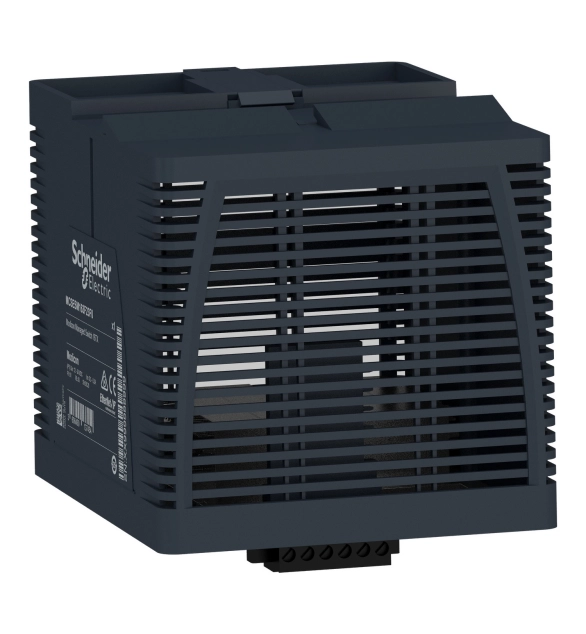

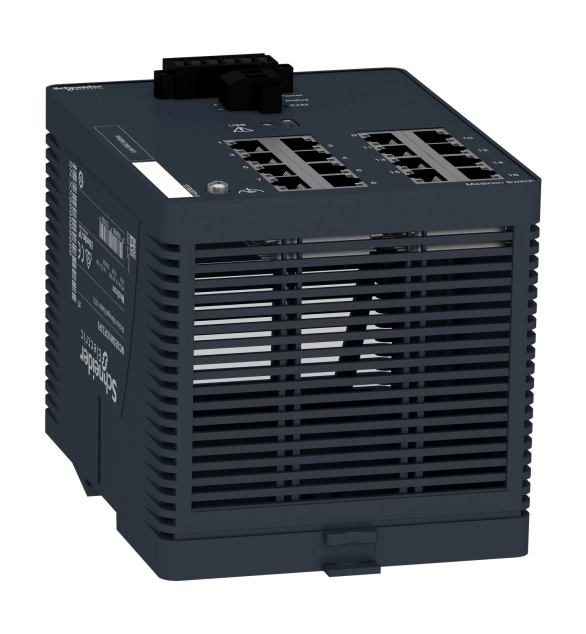

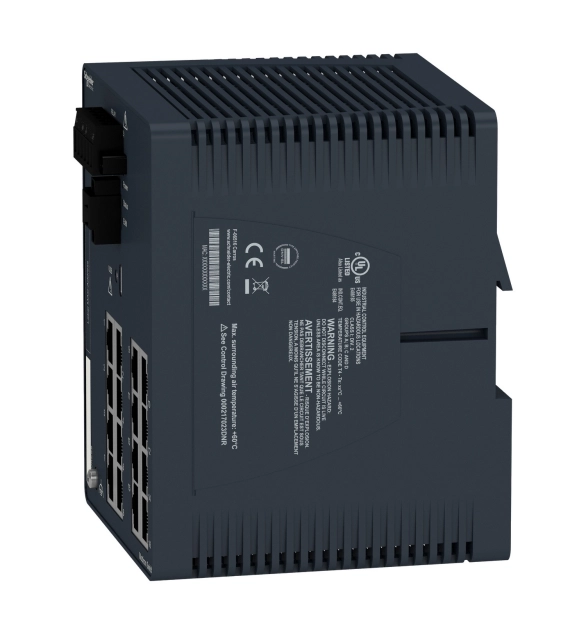

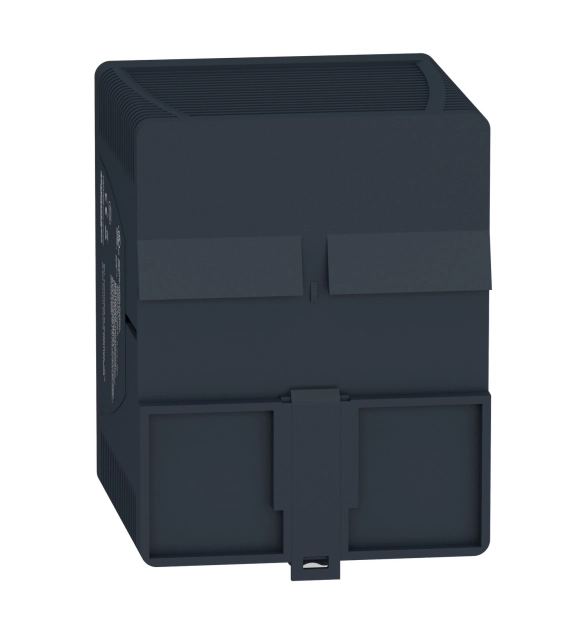

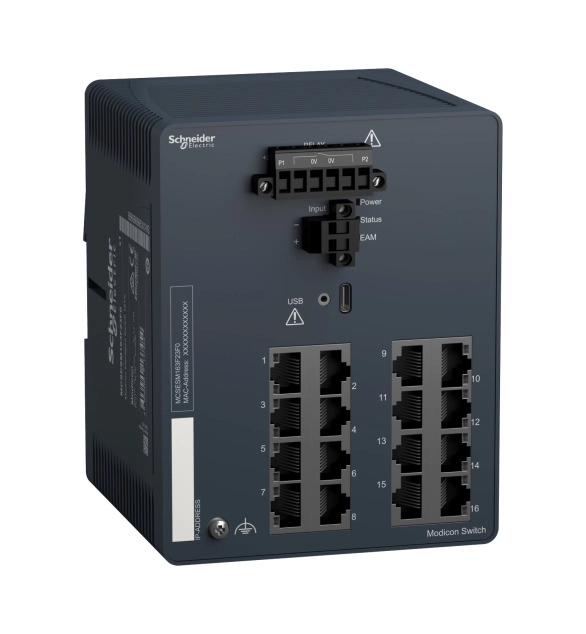

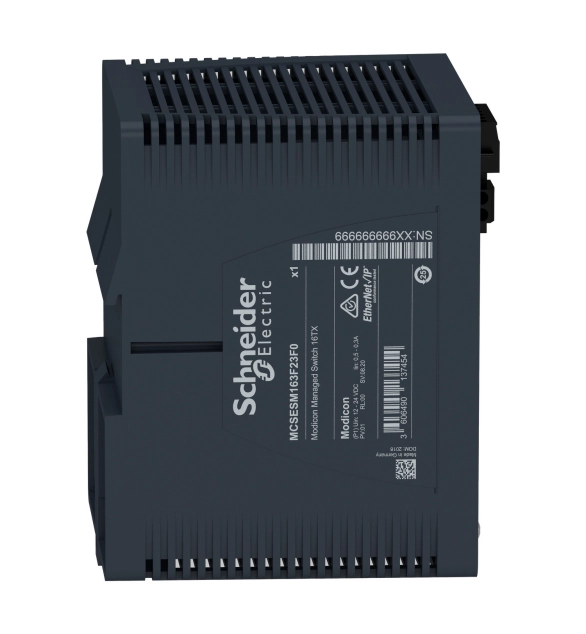

Modicon Managed Switch 16TX

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006410
  • Power over Ethernet (PoE)
    EV000154
  • Compatible with Grade2TV according to XP-C 90-483
    FALSE
  • Compatible with Grade3TV according to XP-C 90-483
    FALSE
  • Manageable
    TRUE
  • Layer 3
    FALSE
  • Ethernet
    TRUE
  • Height
    138
  • Mounting method
    EV000941
  • Depth
    111
  • Layer 2
    TRUE
  • Width
    109
  • Number of ports 100 Mbps SC
  • Number of other ports
  • Number of ports 10 Gbps RJ45
  • Number of ports 100 Gbps Mini GBIC
  • Number of ports 40 Gbps Mini GBIC
  • Number of ports 1000 Mbps GBIC
  • Number of ports 10/100 Mbps M12
  • Number of ports 10/100/1000 Mbps RJ45
  • Number of ports 100 Mbps POF
  • Number of ports 1000 Mbps Mini GBIC
  • Number of ports 1000 Mbps SC (SX)
  • Number of combination-ports RJ45/Mini GBIC
  • Number of ports 100 Mbps ST
  • Number of ports 1000 Mbps RJ45
  • Number of max. stackable switches
  • Max. PoE power
  • Number of ports 100/1000 Mbps Mini GBIC
  • Number of ports 1000 Mbps SC (LX)
  • Number of module slots
  • Number of ports 1000 Mbps POF
  • Number of ports PoE
  • Number of ports 10 Gbps Mini GBIC
  • Number of ports 10/100 Mbps RJ45
    16


Can you tell me about the Modicon Standard Managed Switch and what makes it unique?
The Modicon Managed Switch 16TX is a standard managed Layer 2 switch from Schneider Electric’s Modicon Networking range. It offers secure, flexible Ethernet integration for industrial operations and features a compact, DIN rail-mountable design for easy installation.

What are the key technical specifications of the Modicon Standard Managed Switch?
It provides various switching features, redundancy protocols, communication services, cybersecurity, industrial protocol profiles and diagnostic functions. This product has 16 copper RJ45 ports supporting 10/100 Mbps. The switch mounts on a 35 mm DIN rail, consumes 10 W, and supports dual power input with 12–24 V DC. It operates from 0 °C to 60 °C with IP30 protection, and measures 109 × 143 × 117 mm at 0.88 kg. It is CE, UL, RCM, EAC, UKCA, DNV, FCC, CCCEx certified and meets IEC62443-4-2, UL 61010, EN/IEC 61131, and EN/IEC 62368-1 standards.

What benefits does the Modicon Networking range offer?
The Modicon Networking range provides seamless Ethernet connectivity, flexibility, cybersecurity, and scalability for reliable industrial networking.
