СКУ: SXWMPCDSP10001

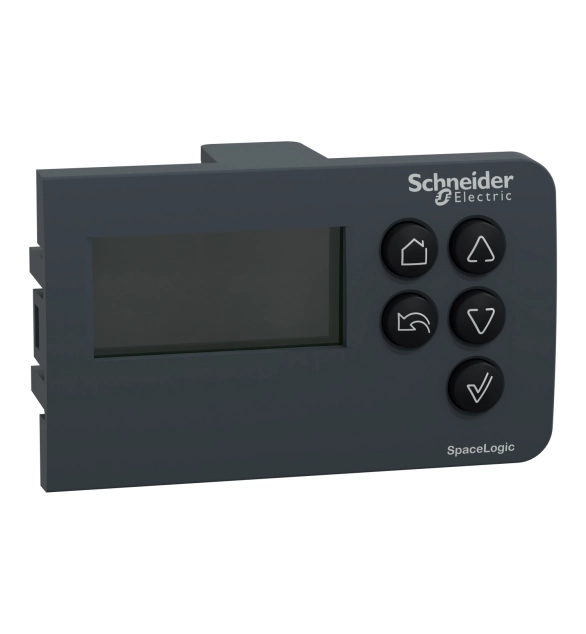

Модул за отмяна на дисплея, SpaceLogic IP, за всички модели MP-C
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Connection for external antenna
FALSE
-
Networkable via radiografic (standard)
FALSE
-
Networkable via radio (optional)
FALSE
-
Smart control
TRUE
-
With time switch clock
FALSE
-
Supply voltage
24
-
Width
153
-
Depth
64
-
Suitable for cooling
FALSE
-
Suitable for heating
FALSE
-
Output voltage
250
-
Reception frequency
50
SpaceLogic MP-C-24A controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. It has a device profile of B-AAC. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-24A has 16 Universal I/O Type Ub, 4 Universal I/O Type Uc and 4 Form A Relay I/O points. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 243 mm (9.2 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).
