СКУ: XB4BD25EX
Превключвател ATEX
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Type of control element
EV004095
-
With light source
FALSE
-
Spring-return
FALSE
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Switching function latching
TRUE
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Degree of protection (NEMA)
EV000154
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Number of switch positions
2
-
Material front ring
EV000914
-
Colour button
EV000206
-
Degree of protection (IP)
EV008925

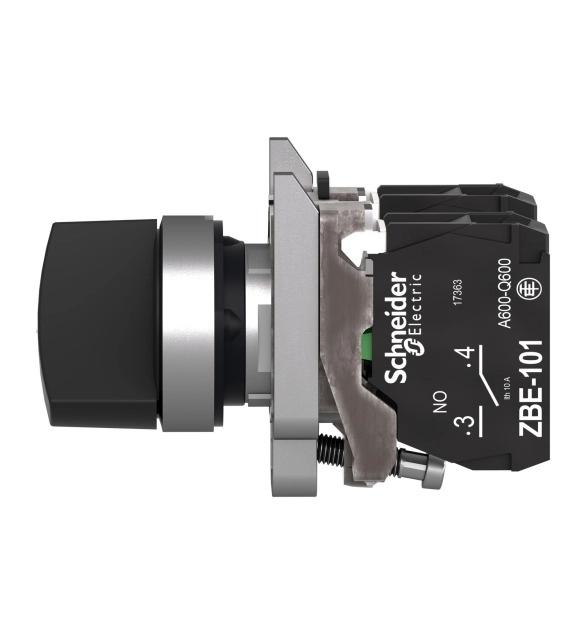

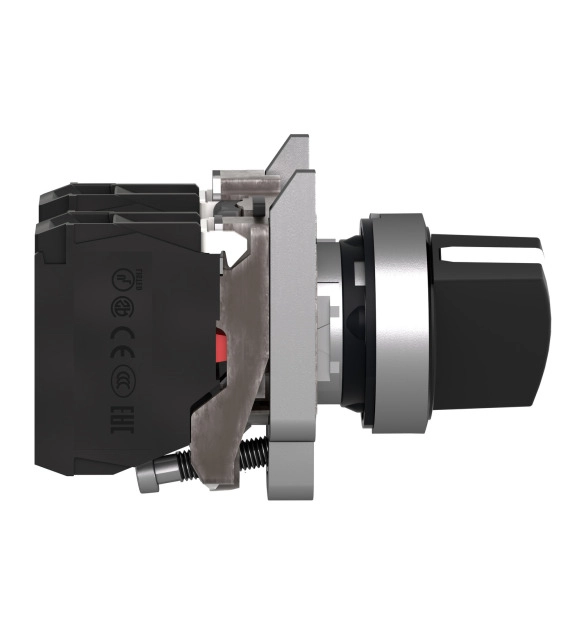

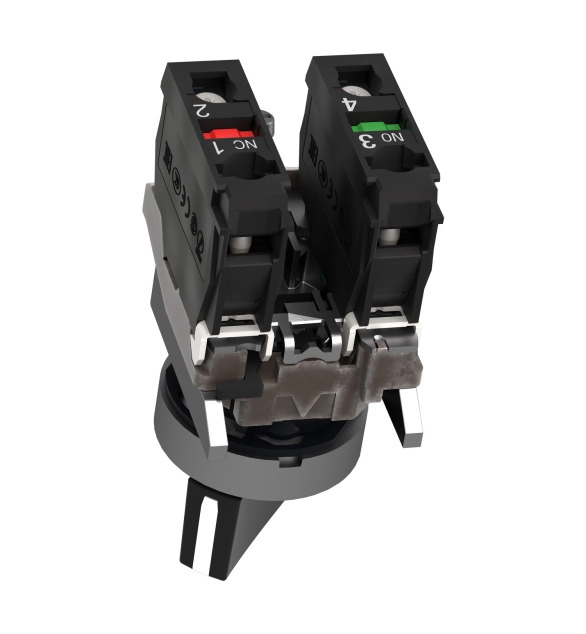

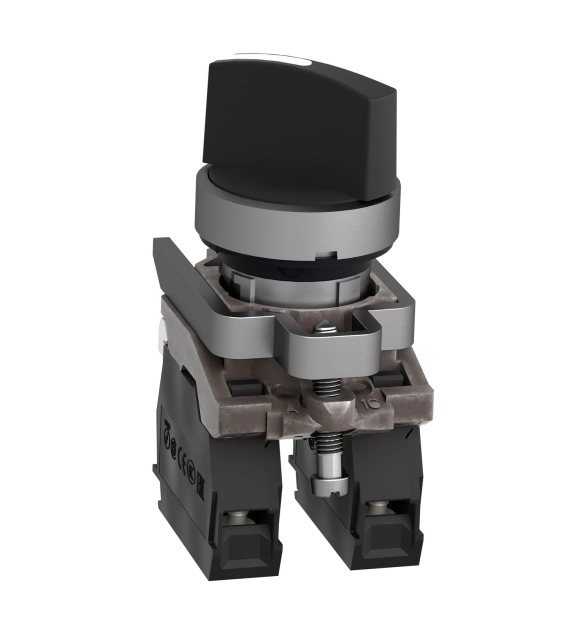

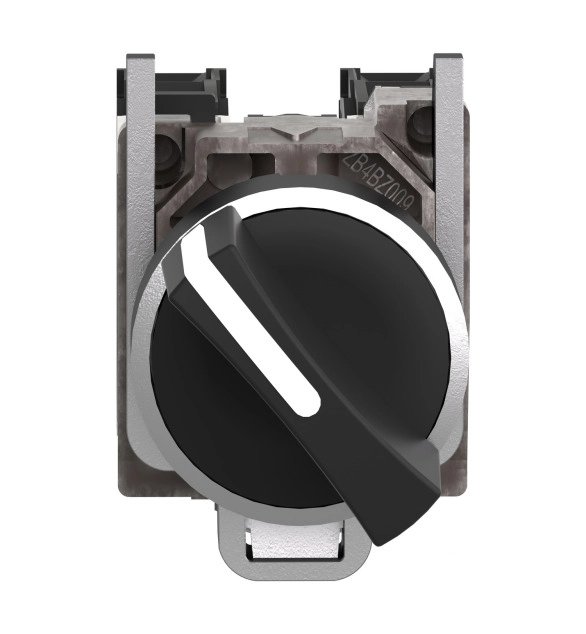

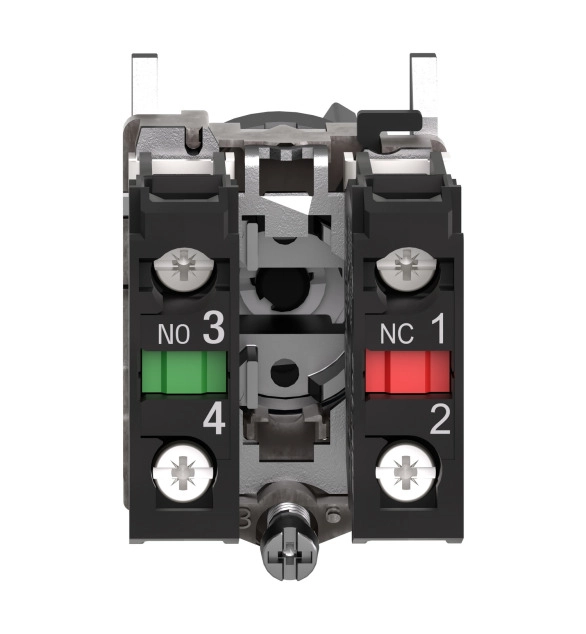

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This key selector switch comes with key number 455 and key withdrawal in left-hand position. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. It has 2 operating positions and operates with a spring return mechanism. It has 1 NO contact with slow-break operation. This metal key selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
