PUSH-IN TERMINAL, FEED THROUGH, 2 POINTS | Spark & Co
  • 3D
|

СКУ: NSYTRP22BL

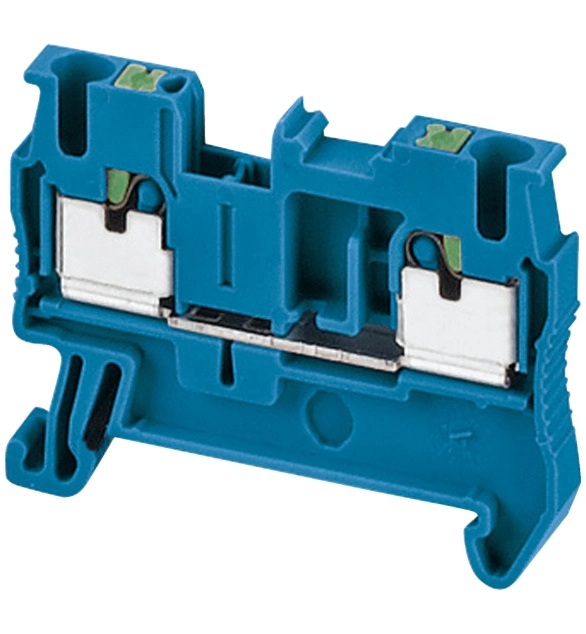

PUSH-IN TERMINAL, FEED THROUGH, 2 POINTS

  • Brand
    Schneider Electric
  • Mounting method
    EV005503
  • Number of levels
    1
  • Internally connected stages
    FALSE
  • Inflammability class of insulation material according to with UL94
    EV004429
  • Material insulation body
    EV000403
  • Colour
    EV000080
  • Rated voltage
    800
  • Closing plate required
    TRUE
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.2
  • Explosion-tested version 'Ex e'
    TRUE
  • Operating temperature
    -40
  • Number of clamp positions per level
    2
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2
  • Width
    5.2
  • Connectable conductor cross section solid-core
    0.14
  • Connectable conductor cross section multi-wired
    0.14
  • Depth
    48.5
  • Type of electrical connection 2
    EV000414
  • Type of electrical connection 1
    EV000414
  • Height
    36.5
  • Rated current In
    24

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1, and 20A conforming to CSA and UL. It has blue surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL).
