СКУ: XD4PA12
SCHNEIDER ELECTRIC Joystick
-
Brand
Schneider Electric
-
With retraction in 0-position
FALSE
-
Colour front ring
EV000291
-
With front ring
TRUE
-
Degree of protection (NEMA)
EV000154
-
Analogue output signal configurable
FALSE
-
Degree of protection (IP)
EV006422
-
Number of switch positions
2
-
Material front ring
EV000914
-
Rated operation current Ie at AC-21, 400 V
10
-
Coder
FALSE
-
Number of actuation directions
2
-
Locking in 0-position
FALSE
-
Number of normally open contacts per actuation direction
1
-
Centre mounting, hole diameter
22
-
Joy stick length
54
-
Number of make-and-break contacts per direction
-
Number of normally closed contacts per actuation direction

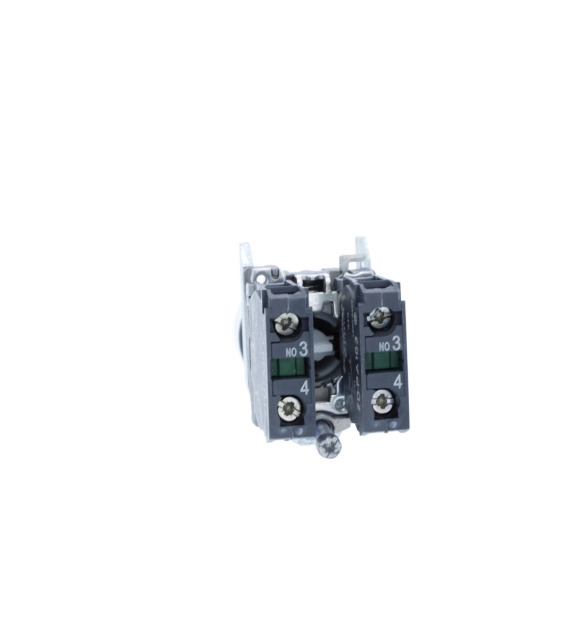

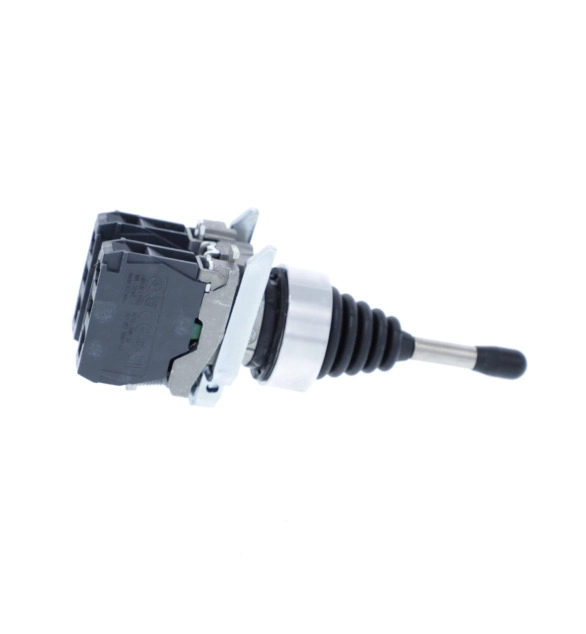

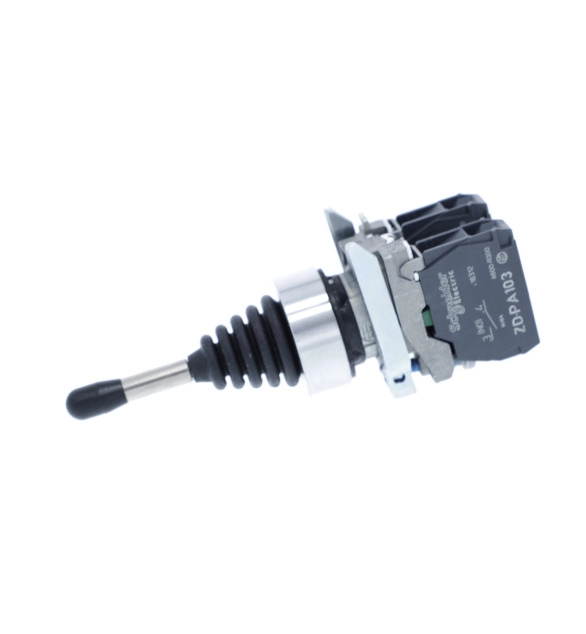

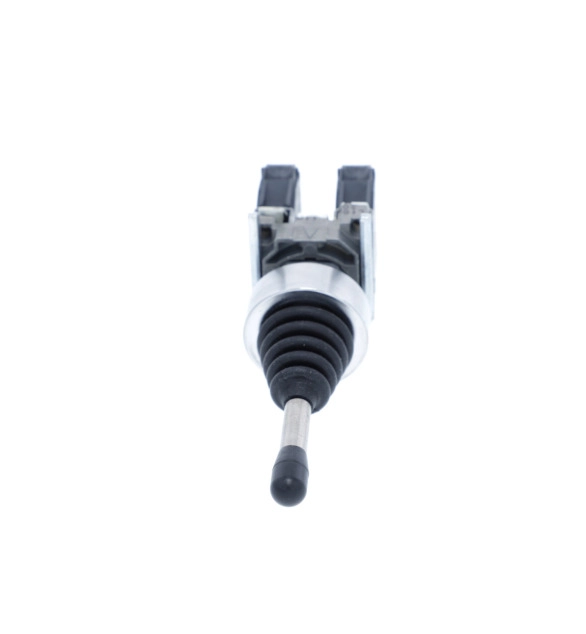

This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
