Brand
Schneider Electric
Degree of protection (IP)
EV006405
Supporting protocol for SERCOS
FALSE
Supporting protocol for INTERBUS-Safety
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
Supporting protocol for SafetyBUS p
FALSE
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for Data-Highway
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for SUCONET
FALSE
Supporting protocol for other bus systems
FALSE
With control element
TRUE
With optical interface
FALSE
Number of HW-interfaces parallel
Number of interfaces PROFINET
Number of HW-interfaces other
Number of HW-interfaces serial TTY
Supporting protocol for EtherNet/IP
TRUE
Supporting protocol for Modbus
TRUE
Supporting protocol for CAN
TRUE
Number of HW-interfaces RS-422
Number of HW-interfaces RS-485
1
Number of HW-interfaces industrial Ethernet
1
Number of analogue outputs
1
Number of HW-interfaces USB
Number of HW-interfaces RS-232
Width
68
Number of digital inputs
6
Supporting protocol for BACnet
FALSE
Number of digital outputs
2
Supporting protocol for PROFIBUS
TRUE
Supporting protocol for DeviceNet
TRUE
Mains frequency
EV008015
Relative symmetric net voltage tolerance
10
Relative symmetric net frequency tolerance
5
Integrated breaking resistance
FALSE
Application in industrial area permitted
TRUE
4-quadrant operation possible
FALSE
With PC connection
TRUE
Number of phases input
EV000599
Application in domestic- and commercial area permitted
TRUE
Max. output voltage
230
Supporting protocol for PROFINET IO
TRUE
Number of analogue inputs
3
Type of converter
EV000154
Mains voltage
115
Max. output frequency
8
Height
270
Depth
237
Number of phases output
EV000154
Max. output at quadratic load at rated output voltage
0.3
Max. output at linear load at rated output voltage
0.3
Nominal output current I2N
1.5

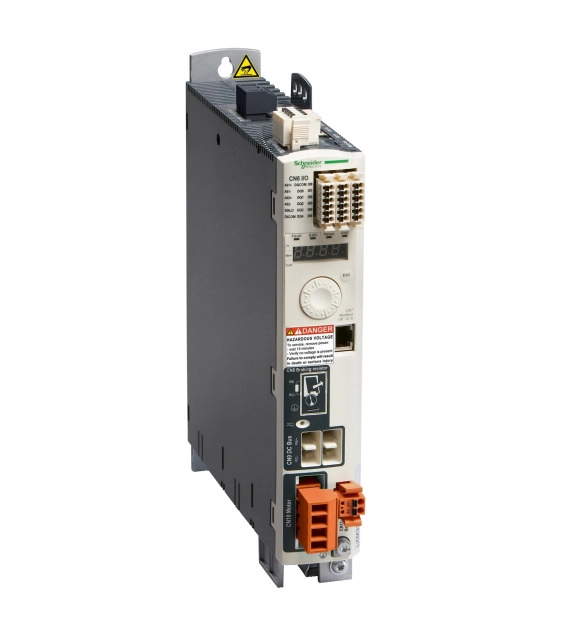

SCHNEIDER ELECTRIC Мotion servo drive, Lexium 32, 30A, single phase, supply voltage 115 to 230V, 0.8 to 1.6kW, Modbus

Item number: LXM32CD30M2
