Сензор за яркост и температура KNX, светло сив | Spark & Co
  • 3D
|

СКУ: MTN663991

Сензор за яркост и температура KNX, светло сив

  • Brand
    Schneider Electric
  • Mounting method
    EV000384
  • Colour
    EV000270
  • RAL-number (similar)
    7035
  • Degree of protection (IP)
    EV006419
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Bus system LON
    FALSE
  • Weather station
    FALSE
  • Bus system radio frequent
    FALSE
  • With heating
    FALSE
  • Acoustic signal
    FALSE
  • With DCF77
    FALSE
  • Analogue input
    FALSE
  • Radio frequent bidirectional
    FALSE
  • Model
    EV006442
  • With bus connection
    TRUE
  • Bus system KNX
    TRUE

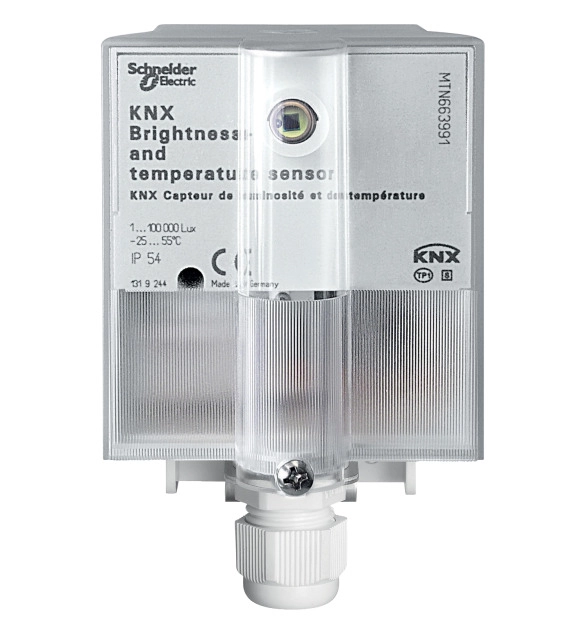

KNX brightness and temperature sensor. The sensor records brightness and temperature and transmits these values to the bus. It has a temperature sensor and a brightness sensor. 3 universal channels for single tasks or logic operations. Temperature and brightness threshold in any combination. Sun protection channel for blinds/roller shutter control. Objects for: twilight threshold, brightness threshold, drive control, automatic sun function, teaching, security. Automatic sun protection. Controls the blinds automatically during the day. Teaching object. With this, every brightness threshold can be reset by the touch of a key. Suitable for mounting on an outside wall.With integrated bus coupler. The bus is connected using a bus connecting terminal. Power consumption: max. 150 mW. Sensors: 2. Temperature measurement range: - 25 °C to + 55 °C (±5 % or ±1 degree). Brightness measurement range: 1 to 100,000 lux (±20% or ±5 lux). Type of protection: IP 54 according to DIN EN 60529 for vertical installation with cover. Dimensions: 110 x 72 x 54 mm. Colour: light grey.
