СКУ: KSA400AB4
Захранващ елемент 400А
-
Brand
Schneider Electric
-
Colour
EV000202
-
Degree of protection (IP)
EV006420
-
Number of poles
5
-
RAL-number
9001
-
Rated voltage at AC 50 Hz
230
-
Power supply position
EV003685
-
Model
EV002646
-
Rated current at AC 50 Hz
400
-
Height
346
-
Length
501
-
Width
213.5

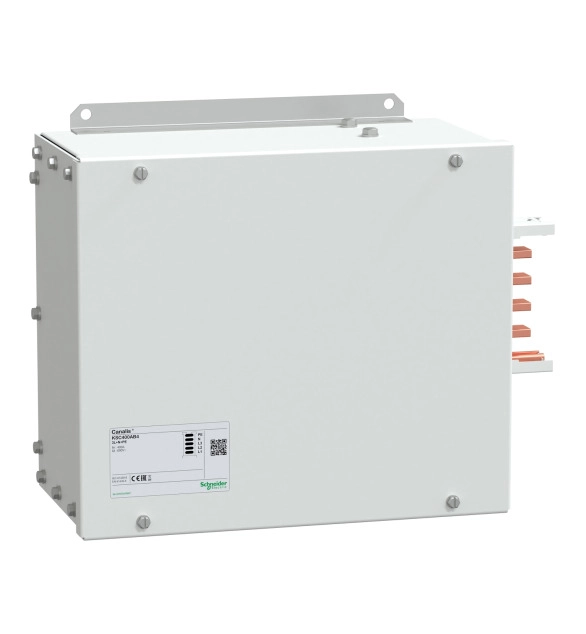

Canalis feed-unit for KSA. It is compatible with FL21 gland plate. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 400A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with right/left mounting location, connection by Lug terminals. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
